BLACK, TUNJA FABRIC SEAT TRIM

CARGO PROTECTION PACKAGE

BODY BUILDER CONNECTOR

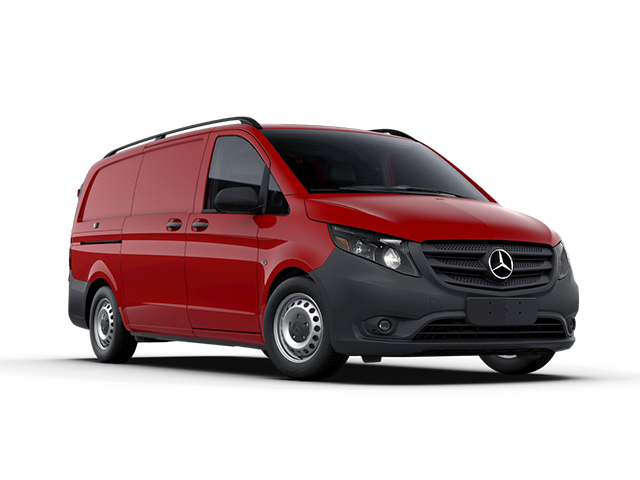

Vehicle Name - Mercedes-Benz Metris Cargo Van

Body Style - Cargo Van 126" WB

Body Code - V

Drivetrain - Rear Wheel Drive

Passenger Capacity - 2

Base Curb Weight (lbs) - 4222

Gross Axle Wt Rating - Front (lbs) - 3307

Gross Axle Wt Rating - Rear (lbs) - 3307

Gross Vehicle Weight Rating Cap (lbs) - 6614

Fuel Economy Est-Combined (MPG) - 22

EPA Fuel Economy Est - City (MPG) - 20

EPA Fuel Economy Est - Hwy (MPG) - 24

Gross Combined Wt Rating (lbs) - 11614

Dead Weight Hitch - Max Trailer Wt. (lbs) - 5000

Dead Weight Hitch - Max Tongue Wt. (lbs) - 500

Wt Distributing Hitch - Max Trailer Wt. (lbs) - 5000

Wt Distributing Hitch - Max Tongue Wt. (lbs) - 500

Maximum Trailering Capacity (lbs) - 5000

Engine Order Code - MM1

Engine Type - Intercooled Turbo Premium Unleaded I-4

Displacement - 2.0 L/121

Fuel System - Gasoline Direct Injection

SAE Net Horsepower @ RPM - 208 @ 5500

SAE Net Torque @ RPM - 258 @ 1250

Trans Order Code - G42

Trans Type - 7

Trans Description Cont. - Automatic w/OD

Trans Description Cont. Again -

First Gear Ratio (:1) - 4.38

Second Gear Ratio (:1) - 2.86

Third Gear Ratio (:1) - 1.92

Fourth Gear Ratio (:1) - 1.37

Fifth Gear Ratio (:1) - 1.00

Sixth Gear Ratio (:1) - 0.82

Reverse Ratio (:1) - 3.42

Trans PTO Access - No

Transfer Case Model - None

Transfer Case Power Take Off - No

Cold Cranking Amps @ 0? F (Primary) - 850

Cold Cranking Amps @ 0? F (2nd) - 850

Tons/yr of CO2 Emissions @ 15K mi/year - 8.1

Maximum Alternator Capacity (amps) - 190

Engine Oil Cooler - None

Suspension Type - Front - Strut

Suspension Type - Rear - Trailing Arm

Axle Type - Front - Independent

Axle Type - Rear - Independent

Axle Ratio (:1) - Front - 3.47

Axle Ratio (:1) - Rear - 3.47

Front Tire Order Code - RG7

Rear Tire Order Code - RG7

Spare Tire Order Code -

Front Tire Size - P225/55HR17

Rear Tire Size - P225/55HR17

Spare Tire Size - Full-Size

Front Wheel Size (in) - 17 X 7

Rear Wheel Size (in) - 17 X 7

Spare Wheel Size (in) - Full-Size

Front Wheel Material - Aluminum

Rear Wheel Material - Aluminum

Spare Wheel Material - Steel

Steering Type - Rack-Pinion

Turning Diameter - Curb to Curb (ft) - 36.4

Brake Type - 4-Wheel Disc

Brake ABS System - 4-Wheel

Brake ABS System (Second Line) - 4-Wheel

Disc - Front (Yes or ) - Yes

Disc - Rear (Yes or ) - Yes

Front Brake Rotor Diam x Thickness (in) - 11.8

Rear Brake Rotor Diam x Thickness (in) - 11

Drum - Rear (Yes or ) -

Rear Drum Diam x Width (in) -

Fuel Tank Capacity, Approx (gal) - 18.5

Front Head Room (in) - 39.6

Front Leg Room (in) - 35.8

Wheelbase (in) - 126

Length, Overall (in) - 202.4

Width, Max w/o mirrors (in) - 75.9

Height, Overall (in) - 75.2

Ground to Top of Load Floor (in) - 22

Ground Clearance, Front (in) - 4.4

Ground Clearance, Rear (in) - 4.4

Rear Door Type - Liftgate

Side Door Type - Sliding

Cargo Area Length @ Floor to Seat 1 (in) - 105.4

Cargo Area Width @ Beltline (in) - 66.3

Cargo Box Width @ Wheelhousings (in) - 50

Cargo Box (Area) Height (in) - 55

Cargo Volume (ft?) - 183

Seventh Gear Ratio (:1) - 0.73

Model Group - Metris

Vehicle Segment - Large Van

Vehicle Type - Cargo Van

Body Cab Style - Cargo Van

Engine Displacement Units - 2.0

Engine Camshaft - DOHC

Engine Block Type - aluminum

Engine Cylinder Count - 4

Engine Valve Count - 4

Country of Origin - Germany Vehicles - all types
